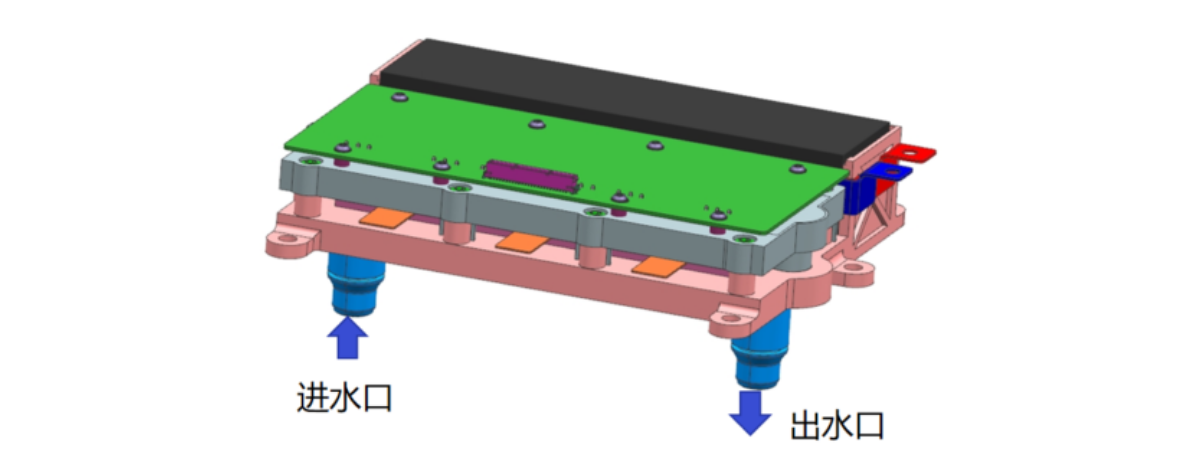

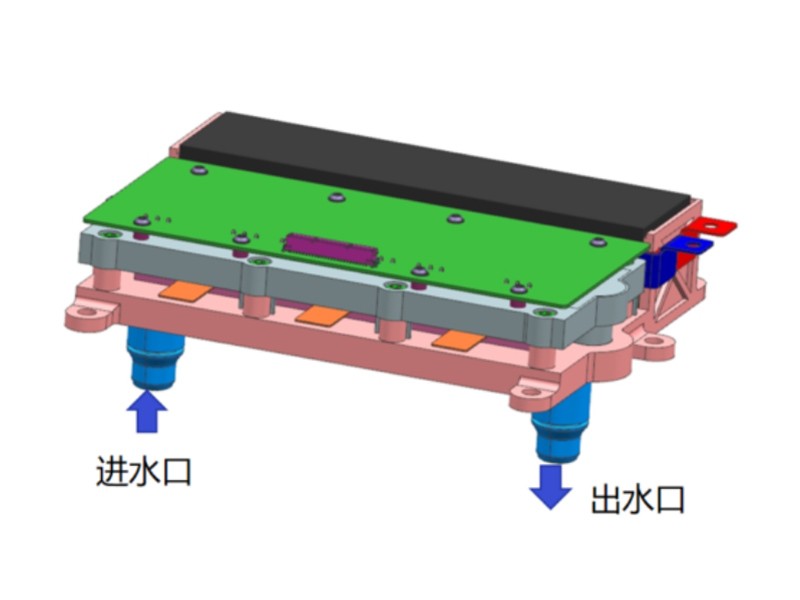

◆ 根据客户需求定制的一个典型例子：模块整体尺寸介于HPD/ miniHPD之间最高电流输出能力可达1000Arms。

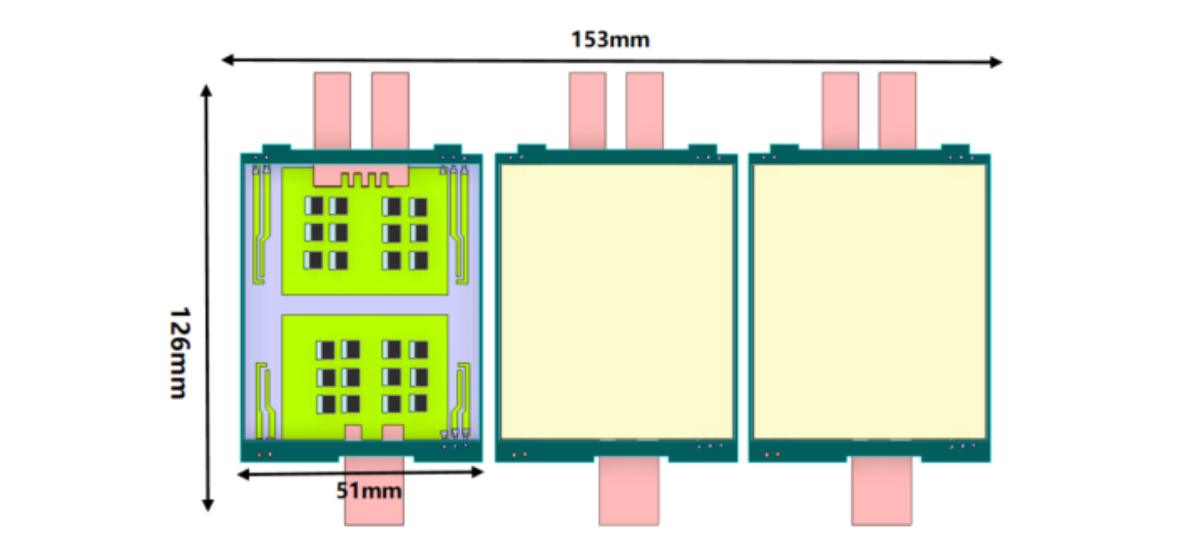

◆ 逆变砖方案
双面水冷设计，更强散热能力
半桥/全桥可选
安装尺寸可按客户需求定制或保持与HPD /miniHPD/DCM兼容
Rdson可低至1mR
最大输出电流可达1200A
杂感＜4nH，均流＜10%
塑封，可满足不低于175℃结温稳定运行
可提供从驱动板到逆变转的全套解决方案
10 MB flash/ECC 保护
1.5MB SRAM/ECC 保护
12xCANFD , 6xQSPI , 2xI²C
ISO 26262/IEC61508 to ASIL-C
AUTOSAR 4.2
| 型号 | 类型 | 封装 | 电压（V） | 电流(A) | Rdson(mΩ) | 应用 |
|---|---|---|---|---|---|---|
| IN150B07A2001_CM | IGBT | Easy2B | 650 | 150 | 工规 | |
| IN150B07A2055_CM | IGBT | Easy2B | 650 | 150 | 工规 | |
| IN150B07A2058_CM | IGBT | Easy2B | 650 | 150 | 工规 | |
| IN150B07A2019_CM | IGBT | Easy2B | 650 | 150 | 工规 | |
| IM007B12F1056_C | SiC | 62mm | 1200 | 300 | 工规 | |
| IM005B12E1057_C | SiC | ED3 | 1200 | 450 | 工规 | |
| IN050B12A2011_CM | IGBT | Easy2B | 1200 | 50 | 工规 | |
| IM038B12A2012_C | SiC | Easy2B | 1200 | 50 | 工规 | |
| IN450B07A3054_CM | IGBT | Easy3B | 700 | 450 | 工规 | |
| IM004B12F1002_C | SiC | 62mm | 1200 | 300 | 工规 | |
| IM004B12F1002_C | SiC | 62mm | 1200 | 300 | 工规 | |
| IN200B12F1005_CF | IGBT | 62mm | 1200 | 200 | 工规 | |
| IN300B12F1006_CF | IGBT | 62mm | 1200 | 300 | 工规 | |
| IN450B12F1007_CU | IGBT | 62mm | 1200 | 450 | 工规 | |
| IN200B12F1031_CF | IGBT | 62mm | 1200 | 200 | 工规 | |
| IN300B12F1032_CF | IGBT | 62mm | 1200 | 300 | 工规 | |
| IN450B12F1033_CU | IGBT | 62mm | 1200 | 450 | 工规 | |
| IN200B12F1044_CF | IGBT | 62mm | 1200 | 200 | 工规 | |
| IN300B12F1045_CF | IGBT | 62mm | 1200 | 300 | 工规 | |
| IN450B12F1046_CU | IGBT | 62mm | 1200 | 450 | 工规 | |
| IN200B12F1040_CF | IGBT | 62mm | 1200 | 200 | 工规 | |
| IN300B12F1041_CF | IGBT | 62mm | 1200 | 300 | 工规 | |
| IN450B12F1042_CU | IGBT | 62mm | 1200 | 450 | 工规 | |
| IM003B12F1016_C | SiC | 62mm | 1200 | 450 | 工规 | |
| IM009B12C1025_C | SiC | 34mm | 1200 | 150 | 工规 | |
| IM006B12F1024_C | SiC | 62mm | 1200 | 200 | 工规 | |
| IM003B12E1003_C | SiC | ED3 | 1200 | 450 | 工规 | |
| IN450B12E1008_CM | IGBT | ED3 | 1200 | 450 | 车规 | |
| IN600B12E1009_CM | IGBT | ED3 | 1200 | 600 | 车规 | |
| IN800B12E1010_CM | IGBT | ED3 | 1200 | 800 | 车规 | |
| IM003B12E1020_C | SiC | ED3 | 1200 | 450 | 车规 | |
| IM002B12E1021_C | SiC | ED3 | 1200 | 600 | 车规 | |
| IN300B12E1013_CM | IGBT | ED3 | 1200 | 300 | 工规 | |
| IN450B12E1014_CM | IGBT | ED3 | 1200 | 450 | 工规 | |
| IN600B12E1015_CM | IGBT | ED3 | 1200 | 600 | 工规 | |
| IN300B12E1026_CM | IGBT | ED3 | 1200 | 300 | 工规 | |
| IN450B12E1027_CM | IGBT | ED3 | 1200 | 450 | 工规 | |
| IN600B12E1028_CM | IGBT | ED3 | 1200 | 600 | 工规 | |
| IN300B12E1047_CM | IGBT | ED3 | 1200 | 300 | 工规 | |
| IN450B12E1048_CM | IGBT | ED3 | 1200 | 450 | 工规 | |
| IN600B12E1049_CM | IGBT | ED3 | 1200 | 600 | 工规 | |
| IN300B12E1034_CM | IGBT | ED3 | 1200 | 300 | 工规 | |
| IN450B12E1035_CM | IGBT | ED3 | 1200 | 450 | 工规 | |
| IN600B12E1036_CM | IGBT | ED3 | 1200 | 600 | 工规 | |
| IN450B12E1029_CM | IGBT | ED3 | 1200 | 450 | 车规 | |
| IN600B12E1030_CM | IGBT | ED3 | 1200 | 600 | 车规 | |
| IN800B12E1043_CM | IGBT | ED3 | 1200 | 800 | 车规 | |
| IN450B12E1050_CM | IGBT | ED3 | 1200 | 450 | 车规 | |
| IN600B12E1051_CM | IGBT | ED3 | 1200 | 600 | 车规 | |
| IN800B12E1052_CM | IGBT | ED3 | 1200 | 800 | 车规 | |
| IN450B12E1037_CM | IGBT | ED3 | 1200 | 450 | 车规 | |
| IN600B12E1038_CM | IGBT | ED3 | 1200 | 600 | 车规 | |
| IN800B12E1039_CM | IGBT | ED3 | 1200 | 800 | 车规 | |
| IM002F12H1022_C | SiC | HPD | 1200 | 600 | 车规 | |
| IM020A12S1017_C | SiC | SOT227 | 1200 | 80 | 工规 | |
| IM023A12S1018_C | SiC | SOT227 | 1200 | 60 | 工规 | |
| IM020A12S1053_C | SiC | SOT227 | 1200 | 80 | 工规 | |
| IM002B12D1023_C | SiC | DCM | 1200 | 600 | 车规 | |
| IN10007K1002_C | IGBT | TO-247-3L | 650 | 100 | 工规 | |
| IN04007K1004_C | IGBT | TO-247-3L | 650 | 40 | 工规 | |
| IF07506K4003_C | FRED | TO-247-2L | 600 | 75 | 工规 | |
| IN07507K1021_C | IGBT | TO-247-3L | 650 | 75 | 车规 | |
| IN10007K3022_C | IGBT | TO-247P-3L | 650 | 100 | 车规 | |
| IN12007K3011_C | IGBT | TO-247P-3L | 650 | 120 | 车规 | |
| IN07507K1005_C | IGBT | TO-247-3L | 650 | 75 | 工规 | |
| IN07507K1012_C | IGBT | TO-247-3L | 650 | 75 | 工规 | |
| IN10007K1006_C | IGBT | TO-247-3L | 650 | 100 | 工规 | |
| IN12007K3007_C | IGBT | TO-247P-3L | 650 | 120 | 工规 | |
| IN05007K1020_C | IGBT | TO-247-3L | 650 | 50 | 工规 | |
| IN04012K1013_C | IGBT | TO-247-3L | 1200 | 40 | 工规 | |
| IN05012K1014_C | IGBT | TO-247-3L | 1200 | 50 | 工规 | |
| IN07512K3015_C | IGBT | TO-247P-3L | 1200 | 75 | 工规 | |
| IN10012K3016_C | IGBT | TO-247P-3L | 1200 | 100 | 工规 | |
| IN05007K2017_C | IGBT | TO-247-4L | 650 | 50 | 工规 | |
| IN07507K2018_C | IGBT | TO-247-4L | 650 | 75 | 工规 | |
| IN10007K3019_C | IGBT | TO-247P-3L | 650 | 100 | 工规 | |
| IF04007K4008_C | FRD | TO-247-2L | 650 | 40 | 工规 | |
| IF07507K4009_C | FRD | TO-247-2L | 650 | 75 | 工规 | |
| IF07507K4010_C | FRD | TO-247-2L | 650 | 75 | 工规 |
